D-RING COBRA® PRO STYLE 18 kN SNAKEBITE, aluminium

25 mm, standard clips

Art.no.: FX25KVD-LS

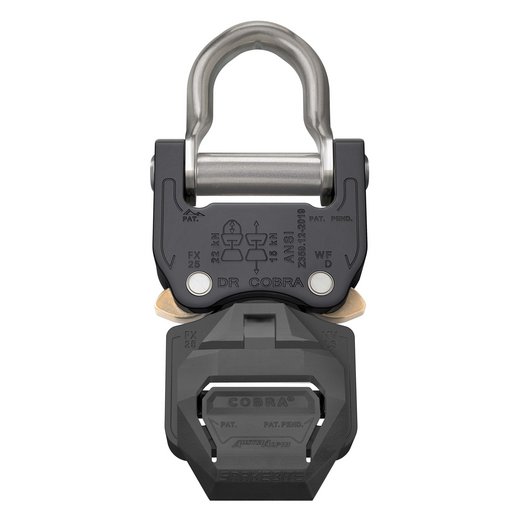

The D-RING COBRA® PRO STYLE 18 kN SNAKEBITE is a powerful fusion of three classical AUSTRIALPIN components: the COBRA® PRO STYLE 18 kN Aluminium buckle, which meets the highest safety requirements, and the stainless-steel D-RING, which is mounted directly on the female part of the buckle. The additionally attached innovative SNAKEBITE polymer clamp locks the adjustable belt strap in place and prevents webbing creep, even when you’re on the move.

This innovative buckle combines the patented COBRA® QUICK RELEASE Technology with the flexibility of a D-RING and the practicality of the SNAKEBITE clamp. Ist unique design prevents the D-RING from getting squeezed and blocked under tension.

The D-RING COBRA® PRO STYLE 18 kN buckles are thicker and stronger than the standard COBRA® PRO STYLE and comply with the ANSI Z359.12-2019 standard with a minimum tensile strength of 15 kN for the buckle and 22 kN for the D-RING. We guarantee 18 kN for the buckle (straight pull) in the technical specifications.

Features:

Both clips need to be pressed at the same time to open the COBRA®. One-sided release by pressing only one clip is nearly impossible.
A release under tension is impossible.
A one-sided locking is nearly impossible. Locking is confirmed by a distinct “clicking” sound.
The cut-out on the backside of the COBRA® PRO STYLE prevents dirt, dust, ice or snow from getting caught in the buckle, which increases the extreme performance capabilities and lifetime even more.
All sizes and variants of the D-RING COBRA® PRO STYLE 18 kN are compatible.

use cases:

PPE, Fashion, air sports, tactical, equipment

Color Range

Find Retailer

Technical specifications

Main material aluminium / ktl-coated

Maincolor black

Breaking load tensile strength18kN

Breaking load D-Ring22kN

Weight120g

Recomm. webbing width male part25mm

Recomm. webbing width female part25mm

Webbing slot male partadjustable, Snakebite

Webbing slot female partwith integrated D-ring, non-adjustable

Single piece testedYes

Made in Austria

Patented

48 mm25 mm5 mm14 mm25 mm111 mm19 mm
